Tapio Harvesters



Tapio  Forestry harvesters

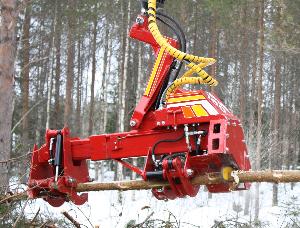

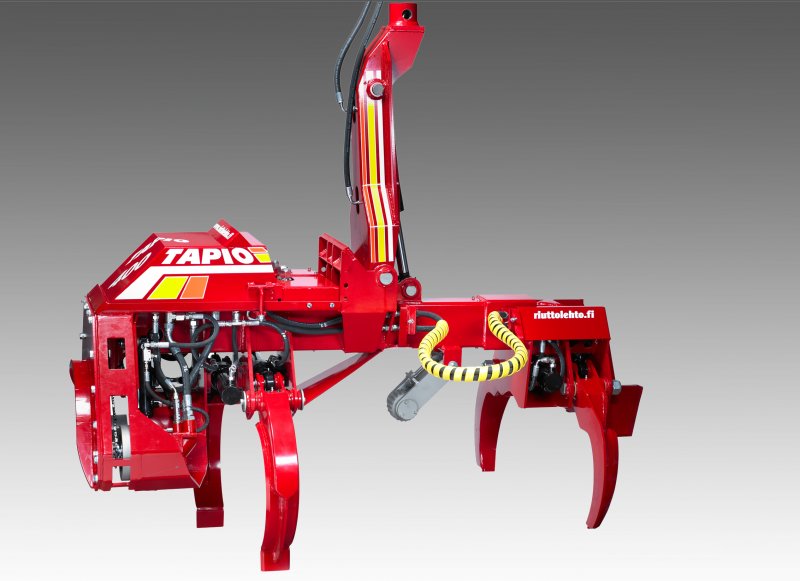

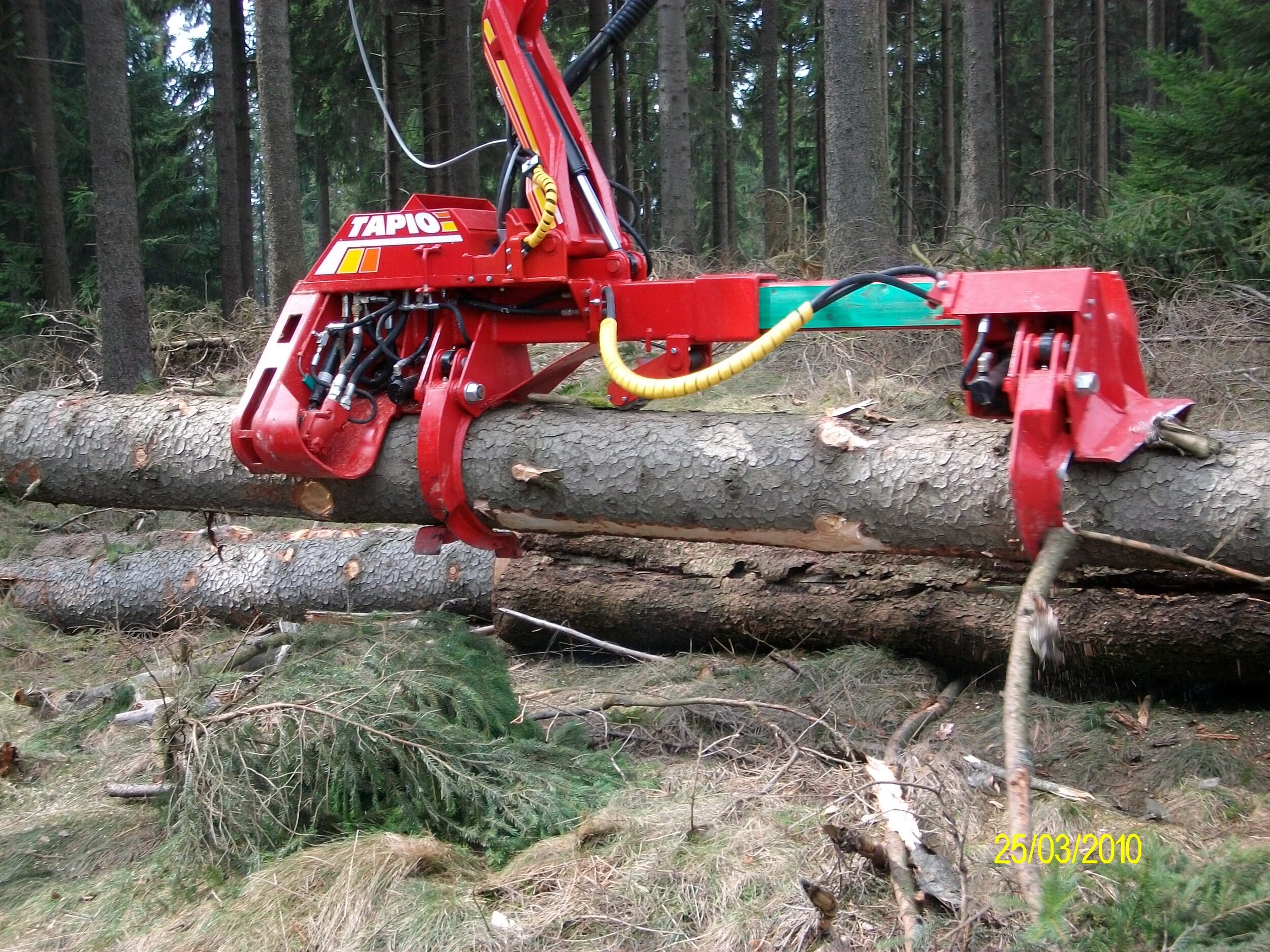

The Tapio harvester is easy to mount on different kinds of basic machines. The crane is equipped with hydraulic pressure, return lines and an electric cable. The main switch, control unit, measuring device and control panels are mounted in the driver's cabin of the basic machine. The harvester can be installed in both an open and a closed hydraulic system.







TAPIO280400400 EXS600 EXS
Length x width x height 1650 x 450 x 450 1650 x 700 x 700 1650 x 700 x 700 1650 x 700 x 700
Weight 330 kg 450 kg 470 kg 550 kg
Electric system 12/24 v 12/24 v 12/24 v 12/24 v
Saw blade
14" 18" 18" 22"
Chain.404" .404" .404" .404"

Pump/pressure 1500r

80 l / min 160 bar 110 l / min 160 bar 110 l / min 160 bar 120 l / min 160 bar
Stoke length 1000 mm 1000 mm 1000 mm 1000 mm
Stroke speed 1 m / sec 1 m / sec 1 m / sec 1 m / sec
Stroke power 20,09 kN 25,00 kN 25,00 kN 31,40 kN

Max cutting diameter

350 mm 450 mm 450 mm 550 mm

Max delimbing diameter

300 mm 400 mm 400 mm 450 mm

Carrier requirements:



Power demand
50 kW 60 kW 60 kW 70 kW

Loader size

30 kNm 50 kNm 50 kNm 70 kNm
Harvester in output 28 kW 35 kW 35 kW 38 kW
